Product Information：

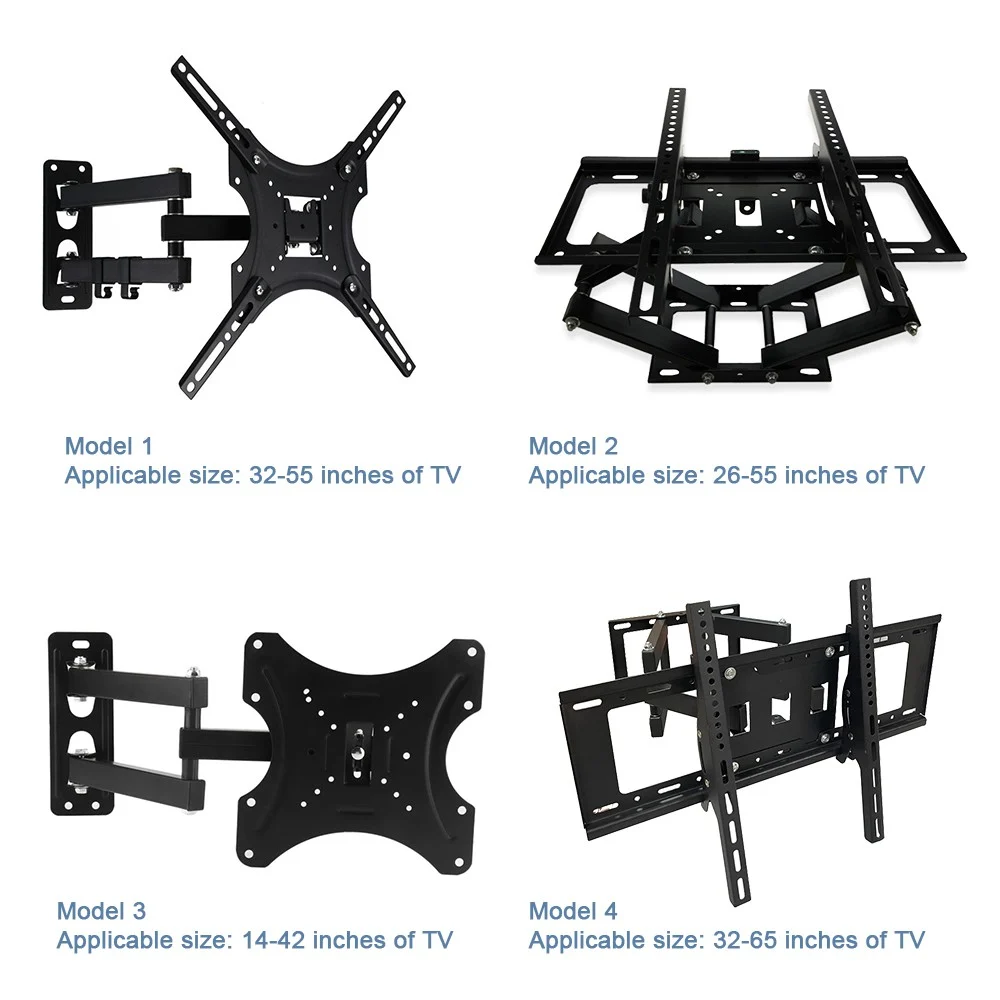

We offer 4 models for you to choose, each model can support a TV size range

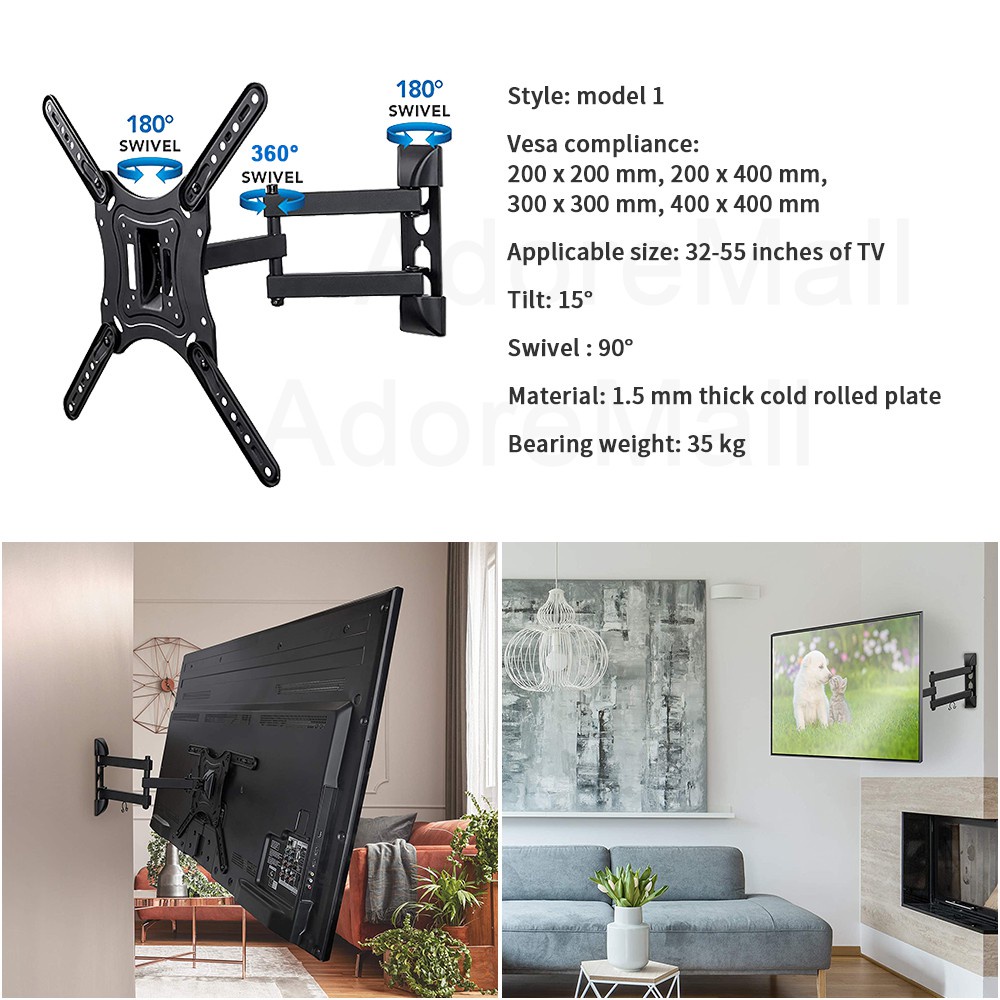

Model 1: for TV size 32" to 55"

Fit for TV size: 32-55 inches

Material: 1.5 mm thick cold rolled steel

Maximum distance from the Wall: 400 mm

Minimum distance from the Wall: 35 mm

Maximum bearing weight: 35 kg

Adjustment: Tilt ±15° Swivel 180°

Support hole distance: 200 x 200 mm, 200 x 400 mm, 300 x 300 mm, 400 x 400 mm

Hole distance length requirements:

1. The left and right hole distance can range from 75 mm to 400 mm

2. the upper and lower hole distance can range from 75 mm to 400 mm

Model 2: for TV size 26" to 58"

Fit for TV size: 26-58 inches

Material: 1.5 mm thick cold rolled steel

Maximum distance from the Wall: 480 mm

Minimum distance from the Wall: 105 mm

Maximum bearing weight: 50 kg

Adjustment: Tilt ±15° Swivel 120°

Support hole distance: 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 300 x 300 mm, 400 x 300 mm, 400 x 400 mm

Hole distance length requirements:

1. The left and right hole distance can range from 40 mm to 420 mm

2. the upper and lower hole distance can range from 50 mm to 400 mm

Model 3: for TV size 14" to 42"

Fit for TV size: 14-42 inches

Material: 1.2 mm thick cold rolled steel

Maximum distance from the Wall: 400 mm

Minimum distance from the Wall: 35 mm

Maximum bearing weight: 25 kg

Adjustment: Tilt ±15° Swivel 180°

Support hole distance: 50 x 50 mm，75 x 75 mm，100 x 100 mm，200 x 200 mm

Hole distance length requirements:

1. The left and right hole distance can range from 75 mm to 200 mm

2. the upper and lower hole distance can range from 75 mm to 200

Model 4: for TV size 32" to 75"

Fit for TV size: 32-75 inches

Material: 1.5 mm thick cold rolled steel

Maximum distance from the Wall: 480 mm

Minimum distance from the Wall: 105 mm

Maximum bearing weight: 50 kg

Adjustment: Tilt ±15° Swivel 120°

Support hole distance: 200 x 200 mm, 200 x 400 mm, 300 x 300 mm, 400 x 400 mm, 600×400 mm

Hole distance length requirements:

1. The left and right hole distance can range from 50 mm to 600 mm

2. the upper and lower hole distance can range from 50 mm to 400 mm

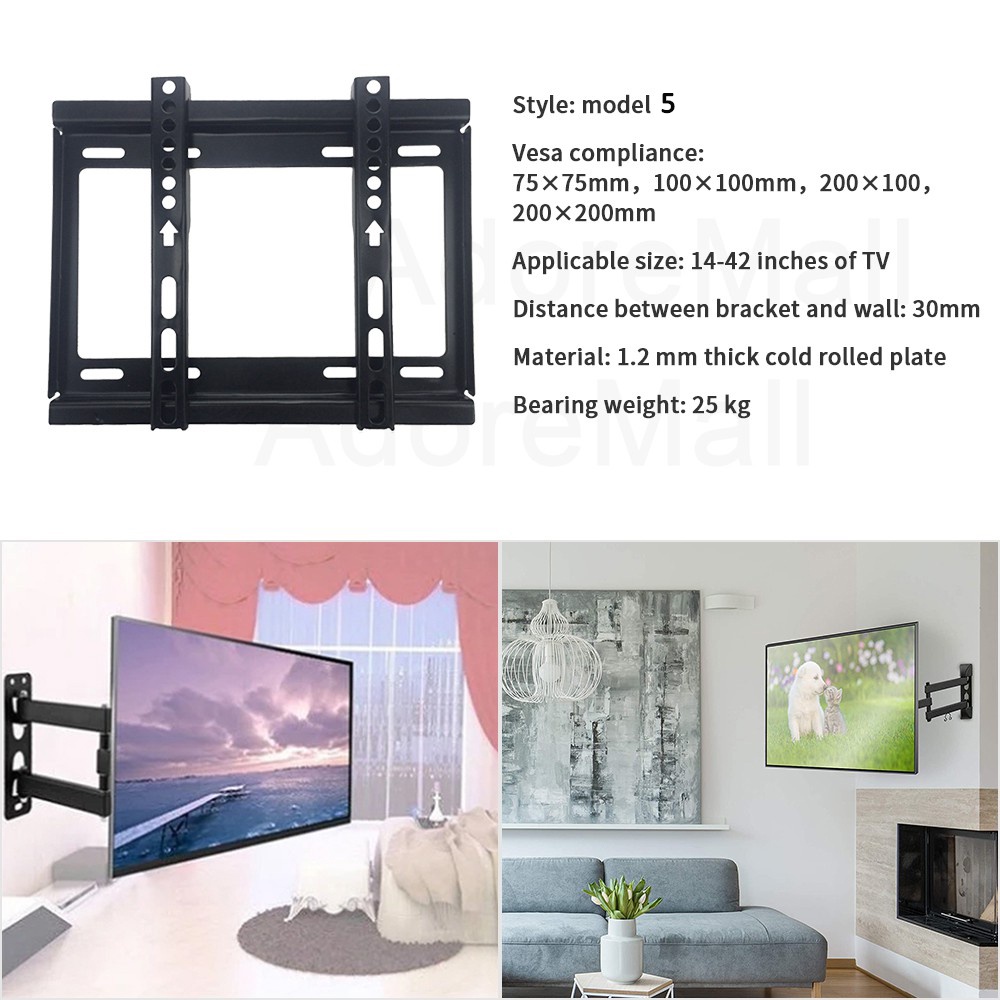

Model 5: for TV size 14" to 42"

Fit for TV size: 14-42 inches

Material: 1.2 mm thick cold rolled steel

Maximum distance from the Wall: 200 mm

Minimum distance from the Wall: 30 mm

Maximum bearing weight: 25 kg

Support hole distance: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm

Hole distance length requirements:

1. The left and right hole distance can range from 50 mm to 250 mm

2. the upper and lower hole distance can range from 50 mm to 210 mm

Model 6: for TV size 26" to 55"

Fit for TV size: 26-55 inches

Material: 1.5 mm thick cold rolled steel

Maximum distance from the Wall: 400 mm

Minimum distance from the Wall: 25 mm

Maximum bearing weight: 50 kg

Support hole distance: 200 × 200 mm, 200 × 400 mm, 300×300 mm, 400×400 mm

Hole distance length requirements:

1. The left and right hole distance can range from 30 mm to 430 m
